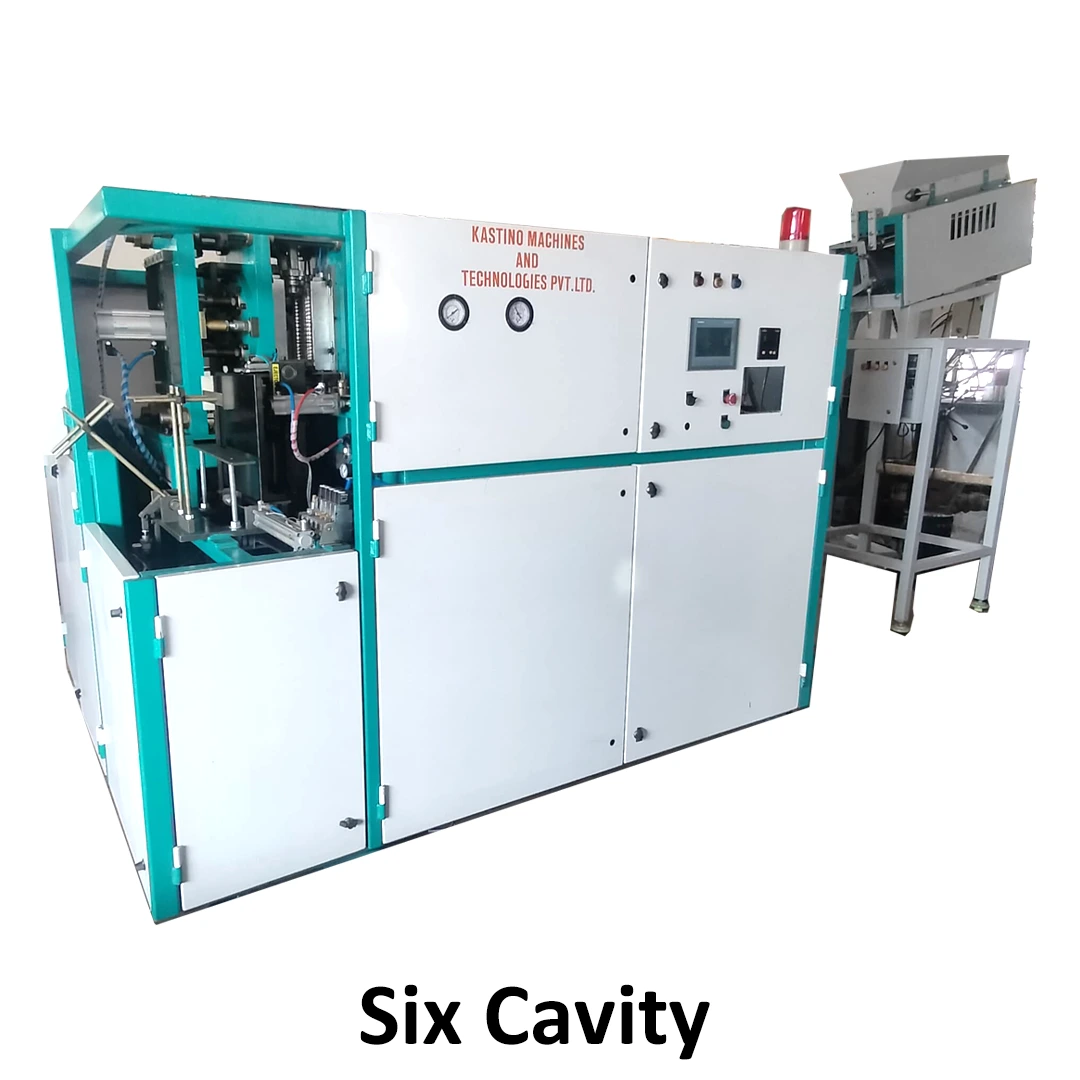

1 x6 Cavity Super-Speed PET Blow Molding Machine
Model : FKAS-1L6C-S8
Key Features
🔄 1 Mold, 6 Cavities – Produce six bottles per cycle for ultra-fast production.
⚙️ Servo-Based Operation (S8 Series) – Enhanced speed, accuracy, and energy efficiency.
🖥️ Smart HMI with Touchscreen Interface – Real-time control, diagnostics & performance logs.
🔥 High-Efficiency IR Heating System – Optimized preform heating with zone-wise control.
❄️ Advanced Cooling Circuits – Ensure rapid cooling and uniform wall thickness.
⏱️ Quick Mold & Preform Change Mechanism – Minimizes downtime and increases versatility.
Description
Model : FKAS-1L6C-S8
The FKAS-1L6C-S8 is Kastino’s flagship high-output, fully automatic PET blow molding machine featuring 6 cavities on a single mold base. Specially designed for industrial manufacturers aiming for maximum productivity and precision, this model combines speed, stability, and state-of-the-art technology to deliver unmatched performance.
Parameter
Model | FKAS-1L6C-S8 |
---|---|
Bottels Per Hour | 10800 |
compressor | 310cm2/100scrow+40booster HP at 310cfm/35kg/cm2 |
Dryer | 400cm2 |
chiller | 15tr |
Electrical | Connected Power |
Machine | 65 kw(82hp) |
scrow com | 56kw/75hp |
booster Com | 22kw/30hp |
Chiller | 2kw |
Dryer | 2kw |
total ele load | 147kw/197hp |
